THJM product range

Engineered movement for furniture.

Real product photography, verified specifications and technical drawings for faster product selection and quotation.

Concealed SlidesSoft-close and push-open

THJM 45 mm ball bearing slide application

45 mm SlidesStandard, soft-close and push-open

THJM heavy-duty ball bearing slide application

Heavy-Duty SlidesUp to 115 kg in the supplied model

THJM soft-close concealed hinge application

Soft-Close HingesFull, half and inset overlay

THJM premium glass-sided drawer system in a modern kitchen

Premium Drawer SystemsSlim glass-sided drawer solutions

01 / Concealed slides

Clean installation. Controlled movement.

Full-extension synchronized undermount slides for concealed cabinet installation, supplied with adjustable 2D front clips.

Soft-close / 2D clip

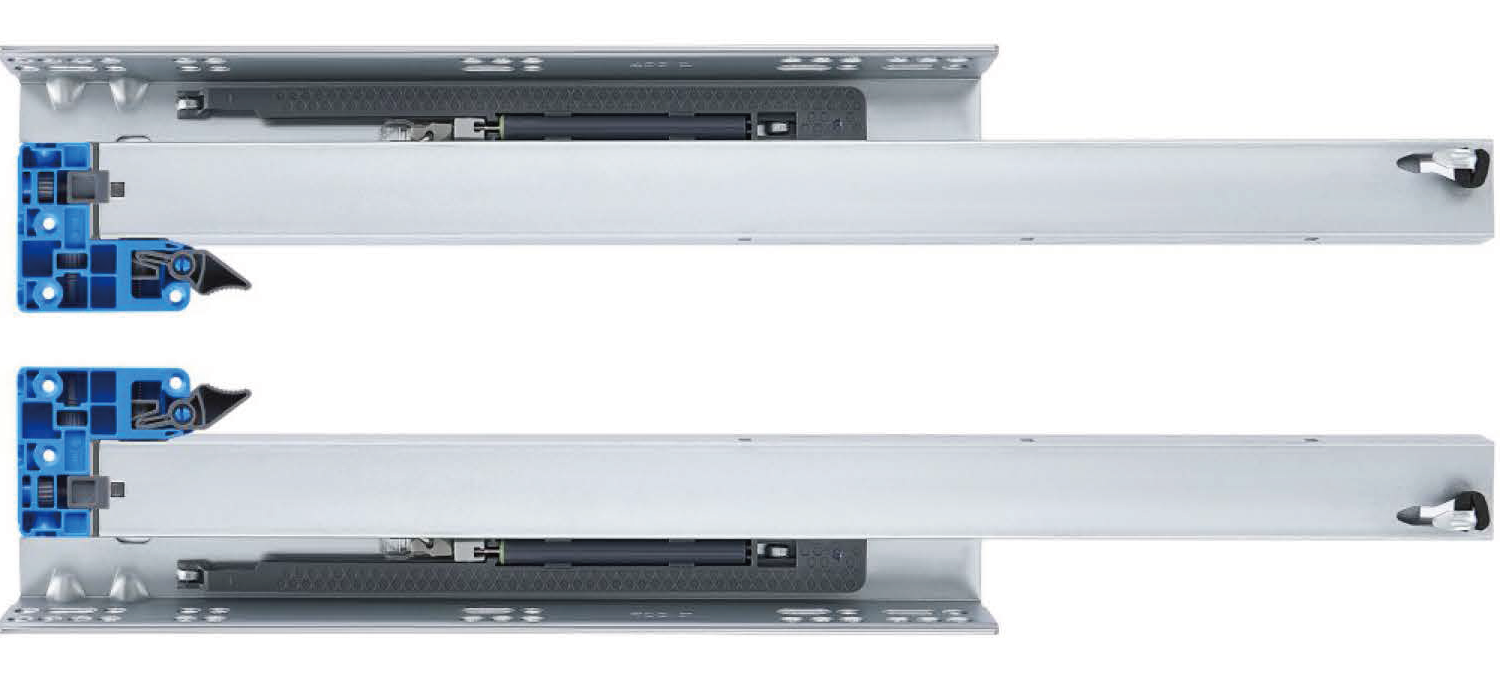

Synchronized Full-Extension Soft-Close Undermount Slides

Synchronized travel and a precision damping system provide smooth, quiet closing with concealed installation.

Load capacity: 35 kg
Cycle test: 50,000+ cycles
Extension: Full extension
Front connection: Adjustable 2D clips
Construction: Anti-fall / anti-sink
Closing: Synchronized soft-close

REQUEST A QUOTE

View dimensions and mounting

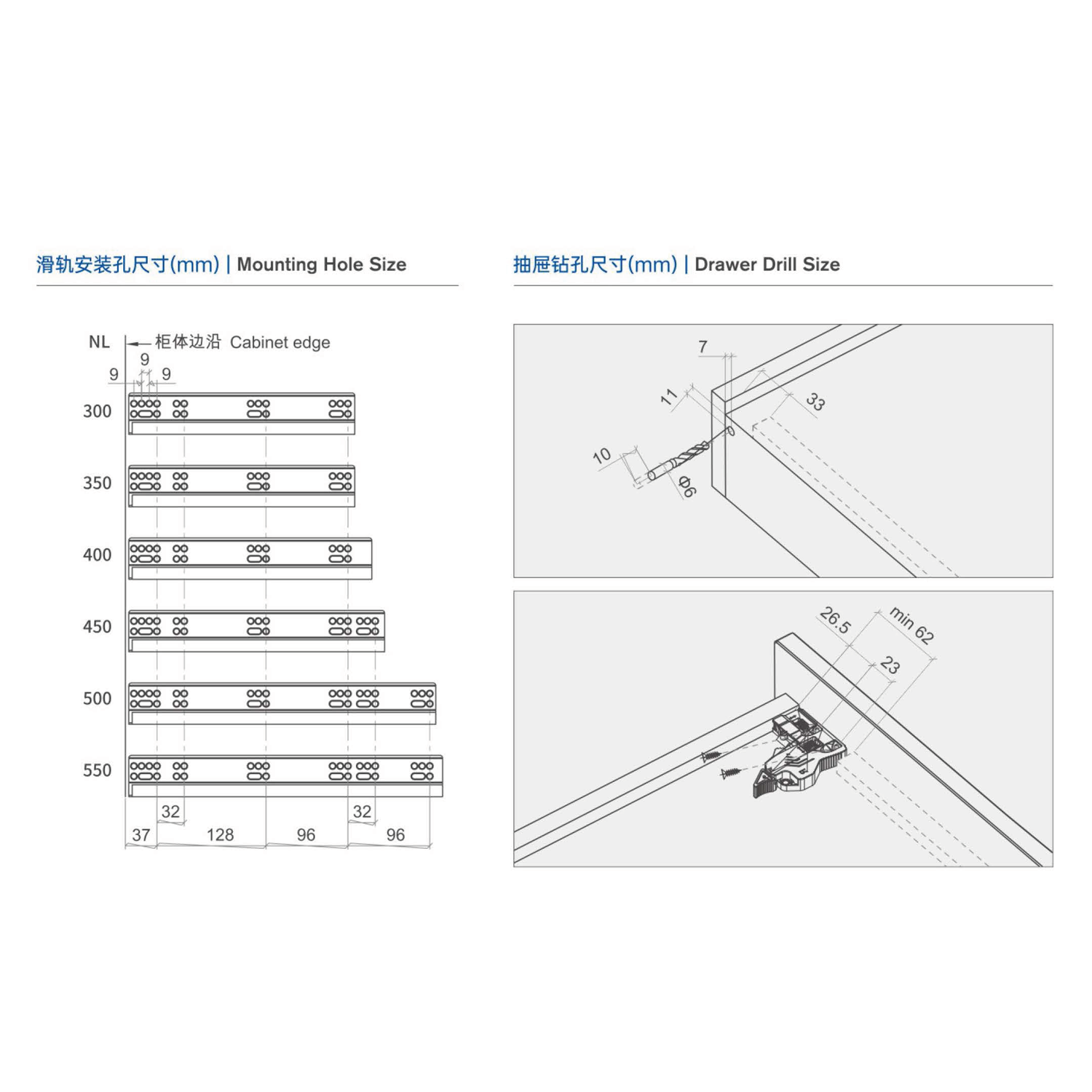

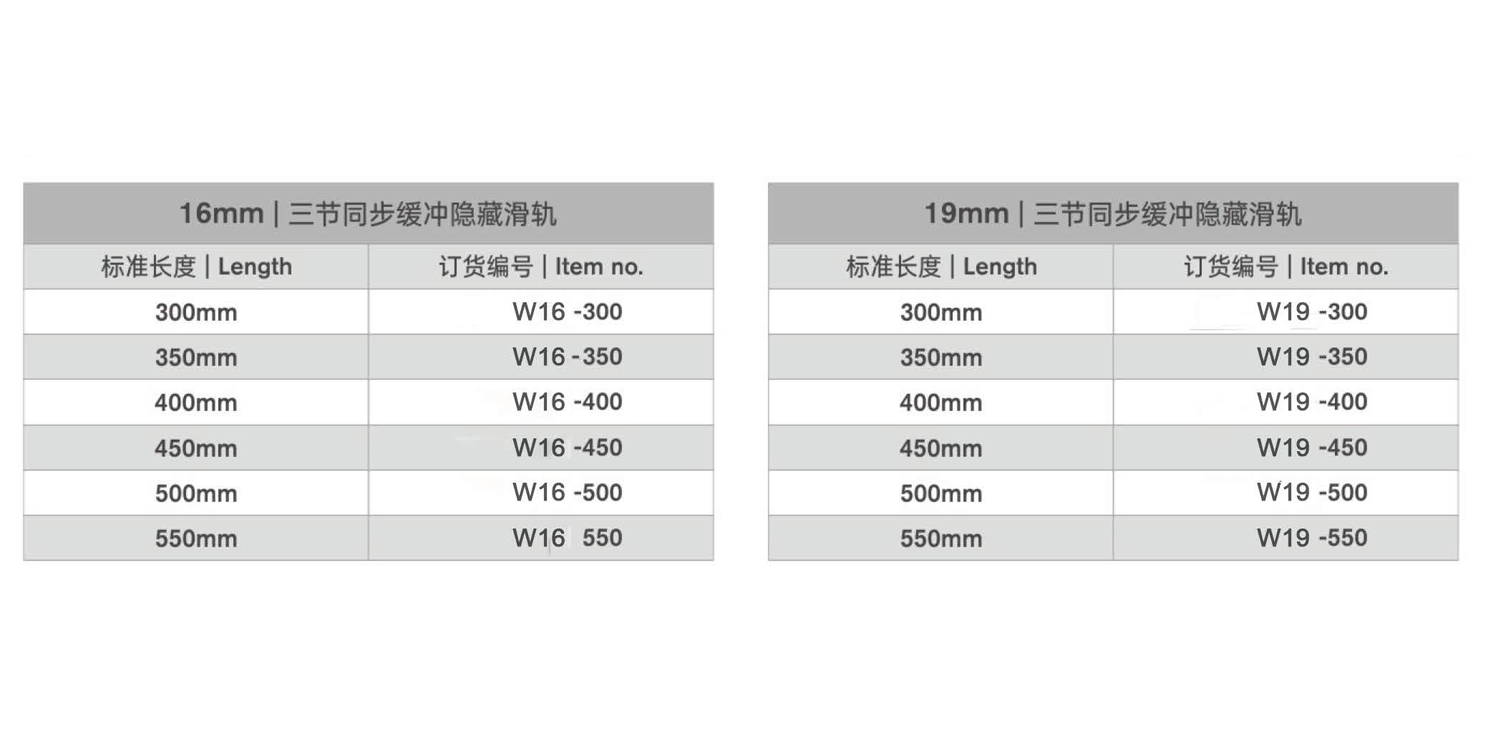

Soft-close undermount slide mounting-hole dimensions

Push-open / 2D clip

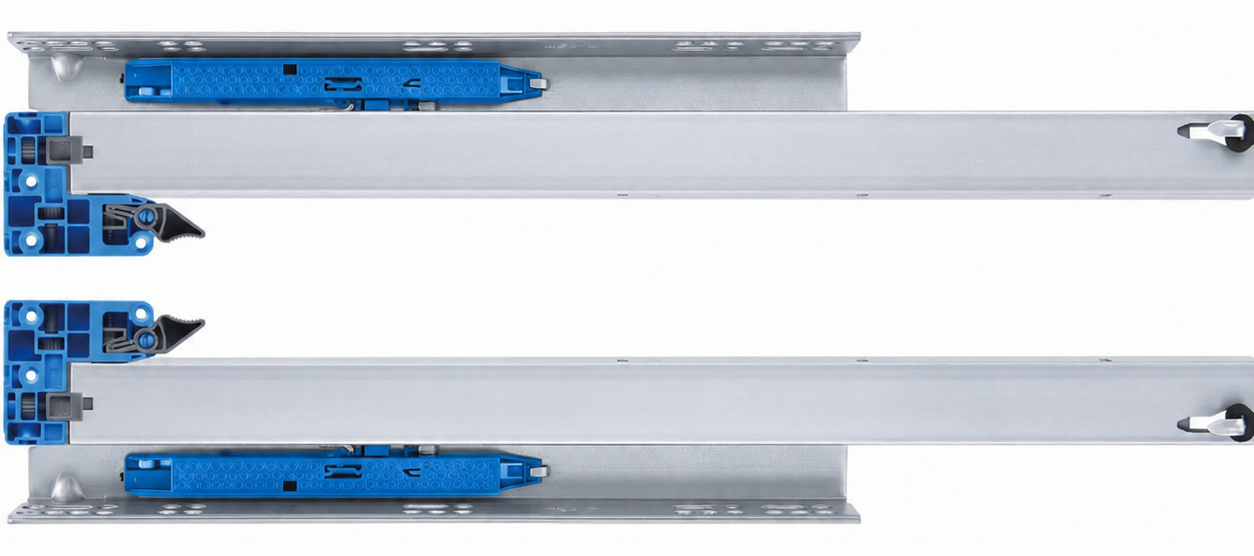

Synchronized Full-Extension Push-Open Undermount Slides

A reinforced push-open mechanism enables handle-free drawer fronts while maintaining synchronized, stable travel.

Load capacity: 35 kg
Cycle test: 50,000+ cycles
Extension: Full extension
Front connection: Adjustable 2D clips
Construction: Anti-fall / anti-sink
Opening: Push-open

REQUEST A QUOTE

View dimensions and mounting

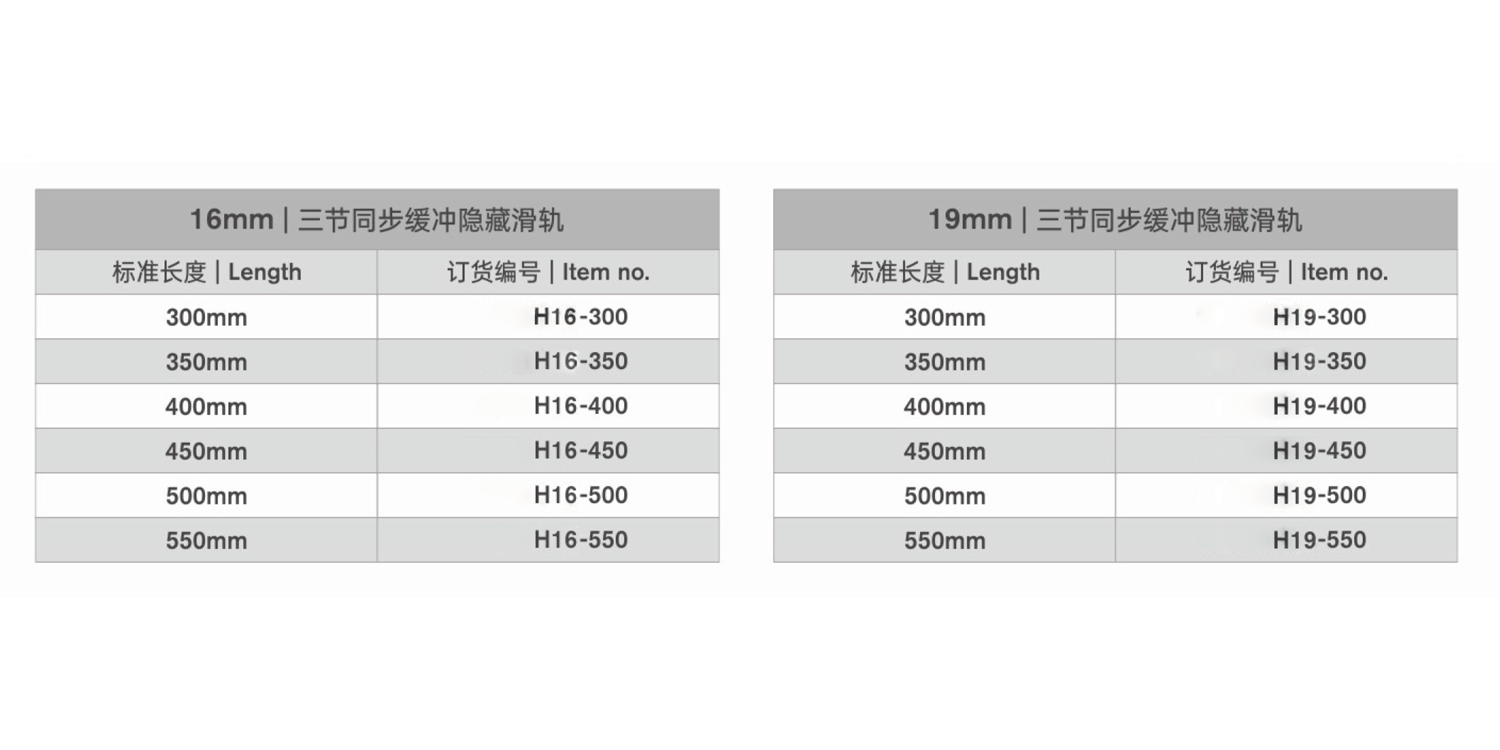

Push-open undermount slide dimensional drawing

Push-open undermount slide mounting-hole dimensions

02 / 45 mm ball bearing slides

One platform. Multiple functions.

Cold-rolled steel, full-extension construction and multiple closing functions for cabinet, furniture and storage applications.

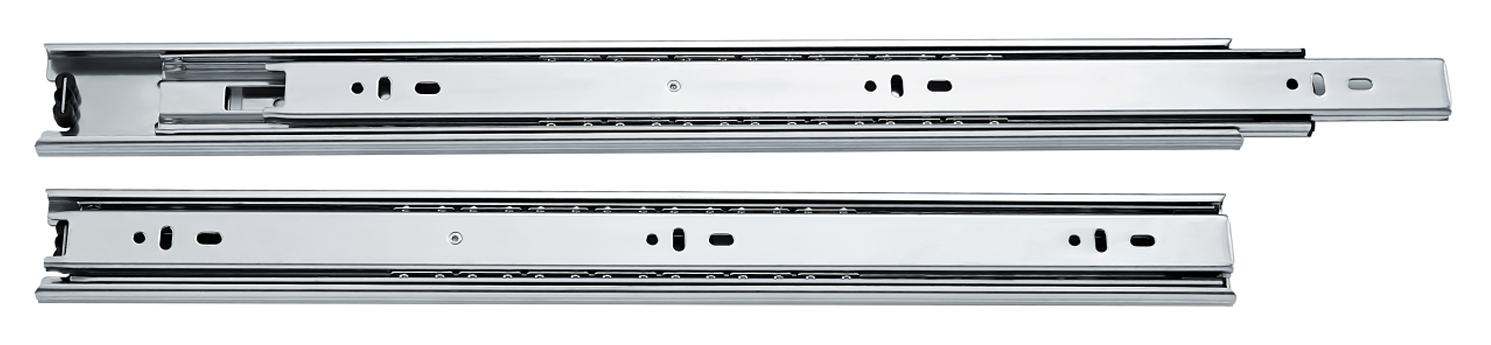

45-C

Full-Extension Ball Bearing Slides

A dependable three-section platform for smooth full access in everyday furniture applications.

Width: 45 mm
Length: 200–600 mm
Load rating: 45 kg / 450 mm
Material: Cold-rolled steel
Finish: Zinc plated / black
Thickness: 1.0×1.0×1.2 or 1.2×1.2×1.4 mm

REQUEST A QUOTE

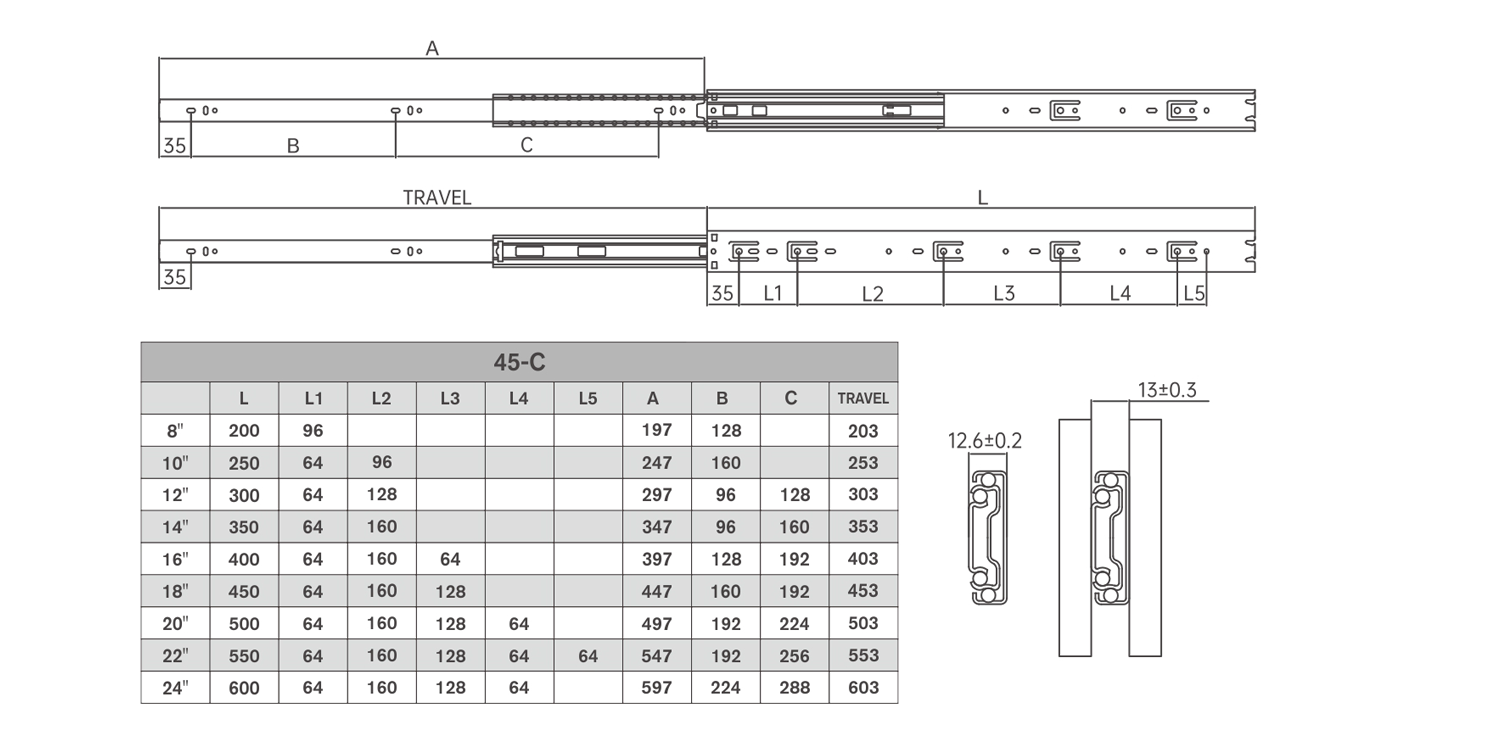

View size table

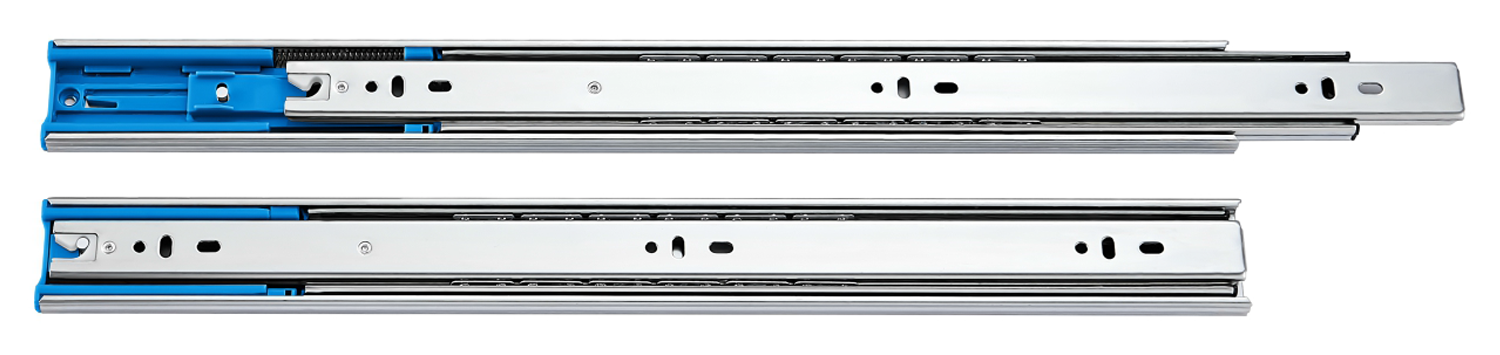

45-AB

Single-Spring Soft-Close Ball Bearing Slides

Full-extension travel with controlled soft closing and an efficient single-spring damping mechanism.

Width: 45 mm
Length: 250–600 mm
Load rating: 45 kg / 450 mm
Material: Cold-rolled steel
Finish: Zinc plated / black
Function: Single-spring soft-close

REQUEST A QUOTE

View size table

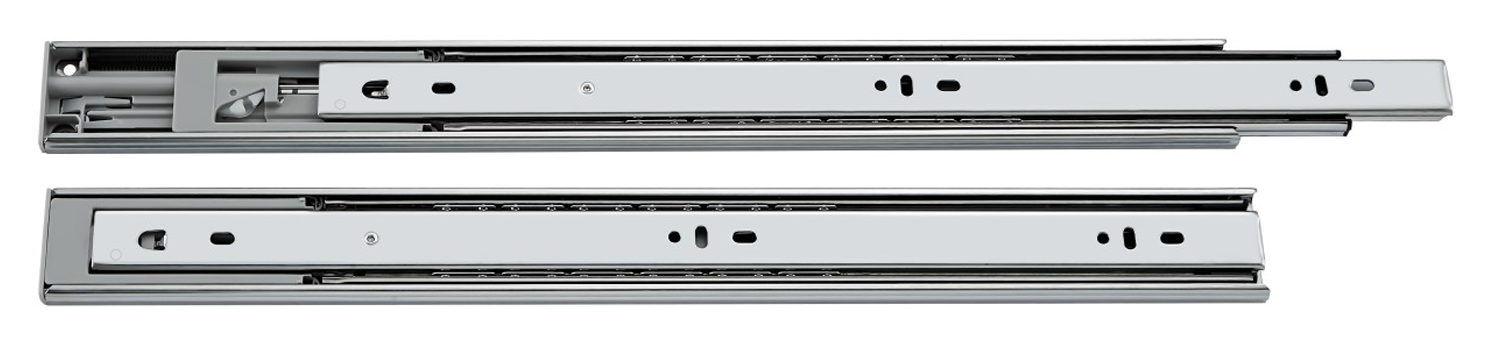

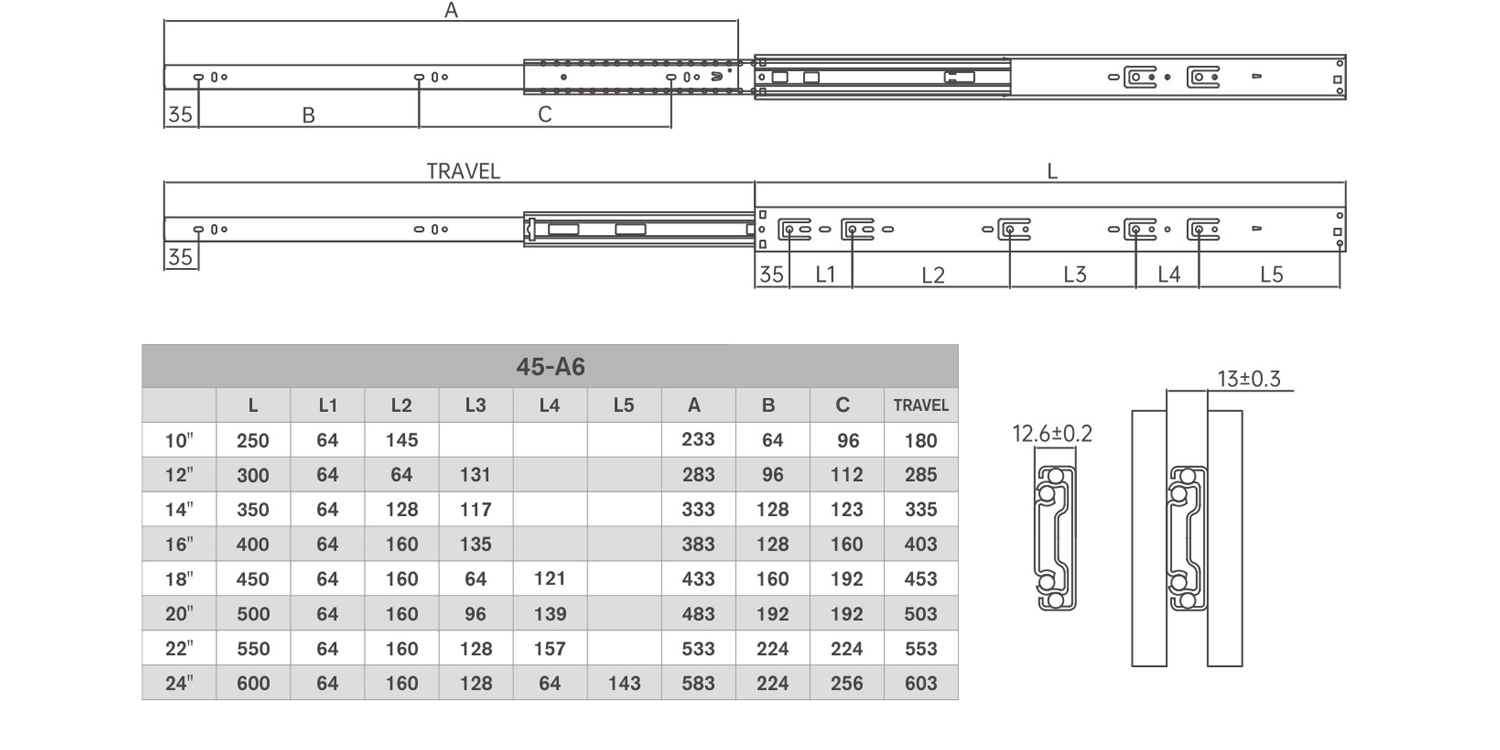

45-A6

Double-Spring Soft-Close Ball Bearing Slides

Twin-spring damping supports smooth, stable soft closing across common cabinet drawer sizes.

Width: 45 mm
Length: 250–600 mm
Load rating: 45 kg / 450 mm
Material: Cold-rolled steel
Finish: Zinc plated / black
Function: Double-spring soft-close

REQUEST A QUOTE

View size table

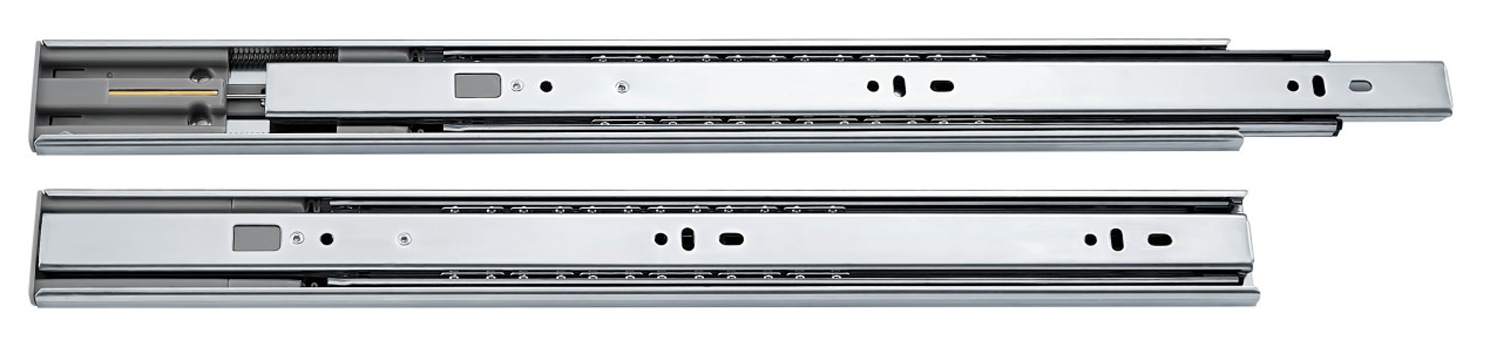

45-D6

Double-Spring Push-Open Ball Bearing Slides

Full-extension push-open movement for handle-free furniture, supported by a stable double-spring mechanism.

Width: 45 mm
Length: 250–600 mm
Load class: 45 kg platform
Material: Cold-rolled steel
Finish: Zinc plated / black
Function: Double-spring push-open

REQUEST A QUOTE

View size table

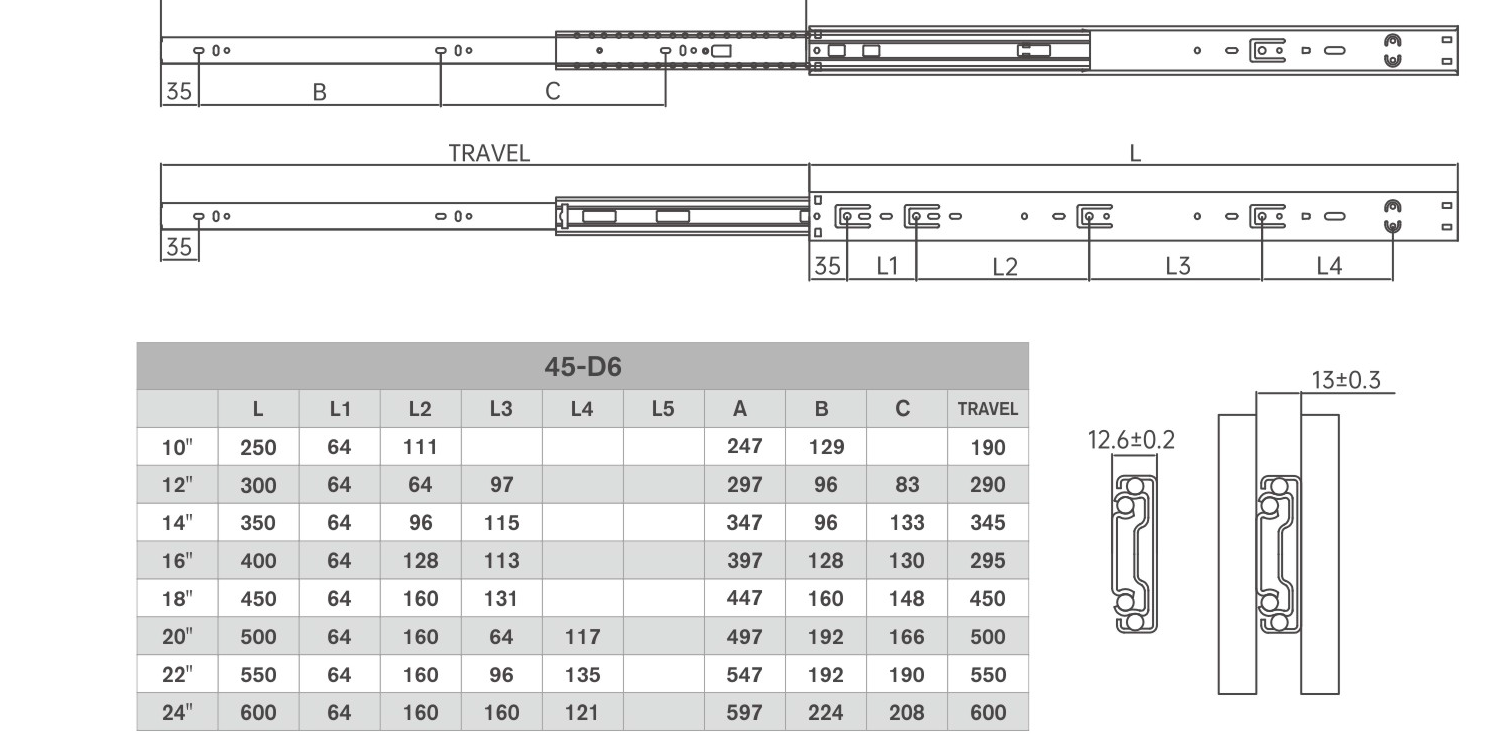

The supplied 45-D6 dimensional drawing is used here; the conflicting 45-AB parameter screenshot has been excluded.

03 / Heavy-duty slides

Higher loads. Controlled closing.

The current supplied heavy-duty model combines three-section extension, soft closing and a 2.0 mm cold-rolled steel structure.

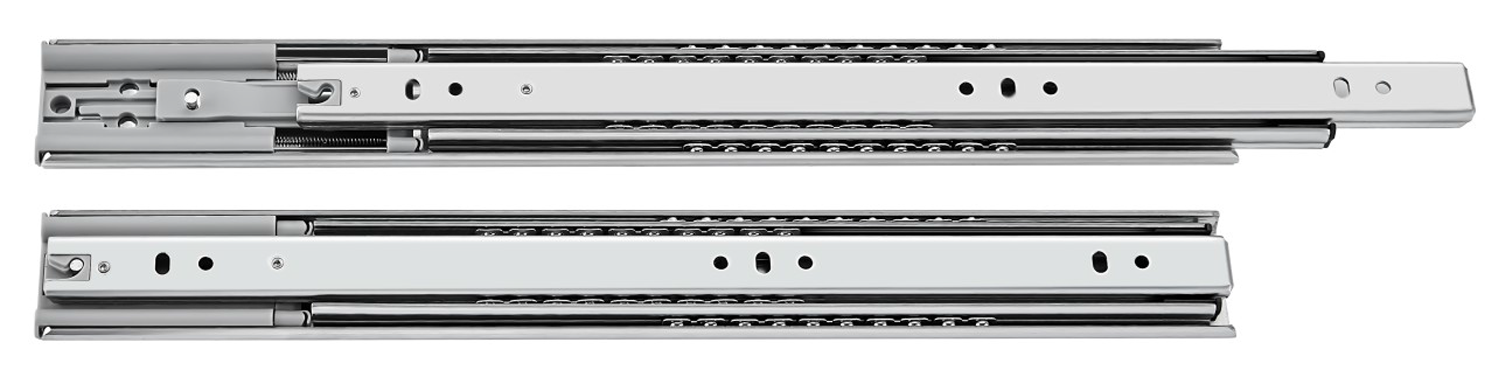

53-B heavy-duty soft-close ball bearing slides

53-B

Heavy-Duty Three-Section Soft-Close Ball Bearing Slides

Built for high-load storage and equipment applications that require controlled, damped closing.

Width: 53 mm
Length: 300–1000 mm
Load rating: 115 kg / 450 mm
Material: Cold-rolled steel
Finish: Zinc plated / black
Thickness: 2.0×2.0×2.0 mm

REQUEST A QUOTE

View size table

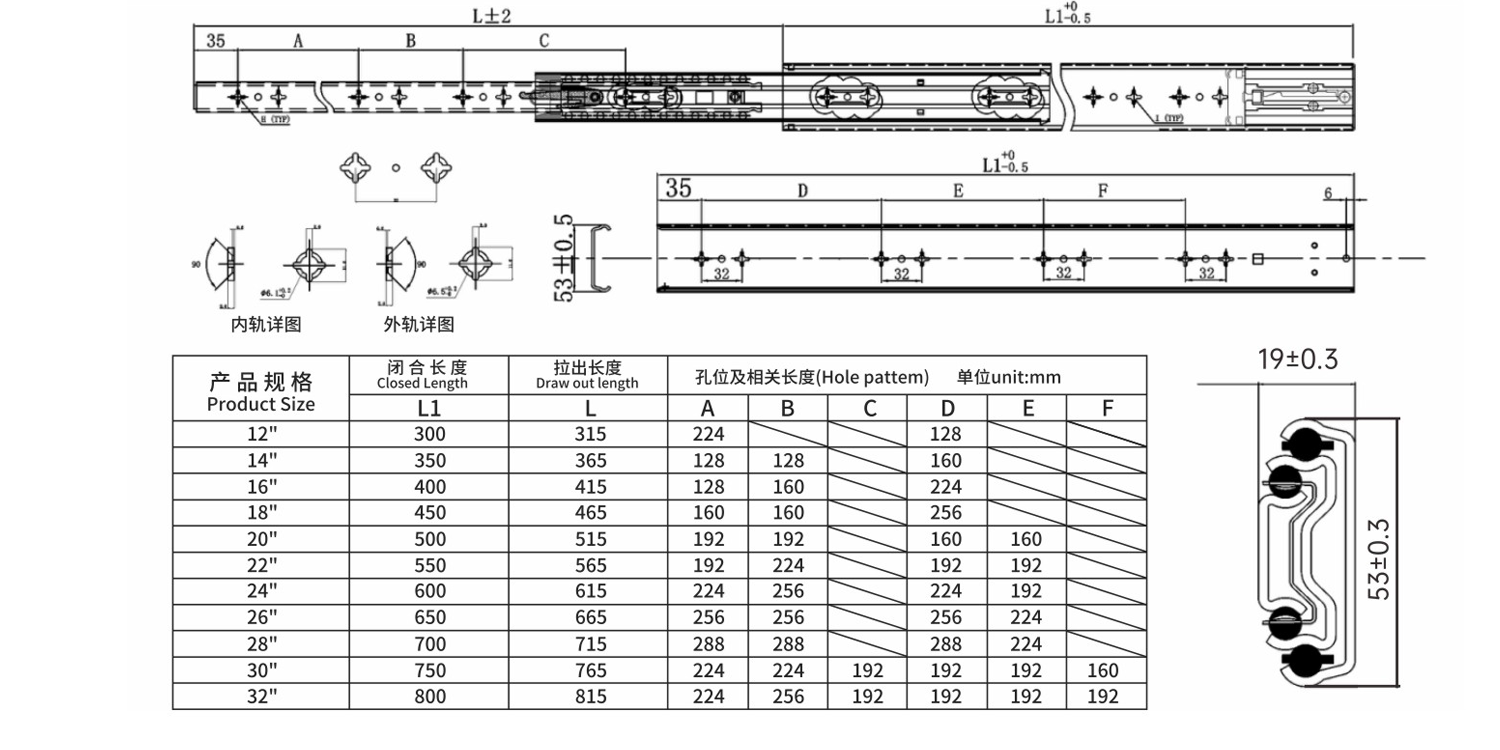

53-B heavy-duty slide dimensional drawing

04 / Soft-close hinges

One hinge platform. Three cabinet applications.

Integrated soft closing for thick and thin cabinet doors, offered in full-overlay, half-overlay and inset configurations.

Full overlay

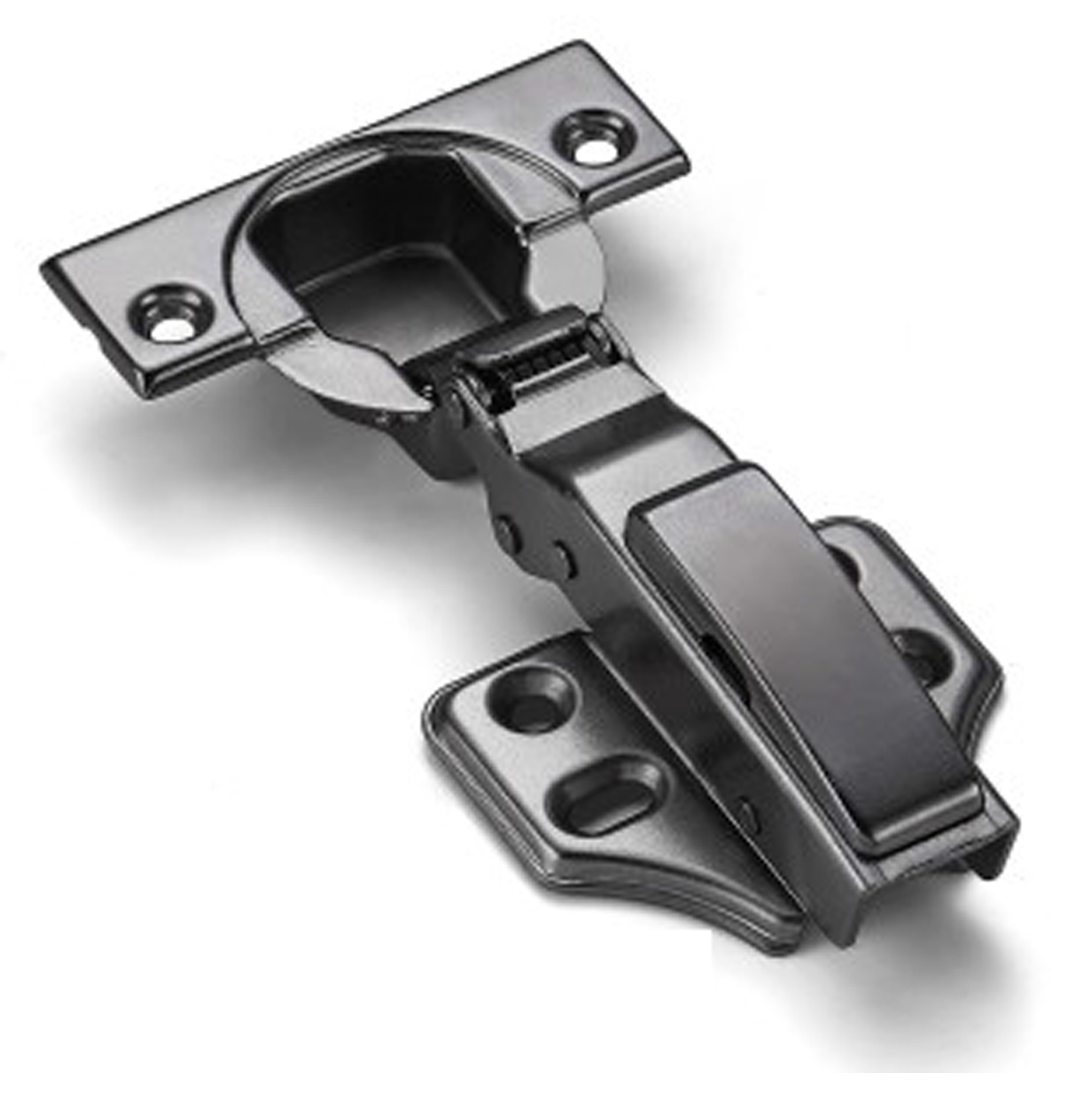

Three-Stage Soft-Close Concealed Hinge

Full-overlay configuration for cabinet doors covering the cabinet side panel.

Material: Cold-rolled steel
Finish: Zinc plated / dark finish
Door thickness: 18–28 mm
Side panel: 18–21 mm
Hinge cup: 35 mm × 11.5 mm
Hole spacing: 48 mm

REQUEST A QUOTE

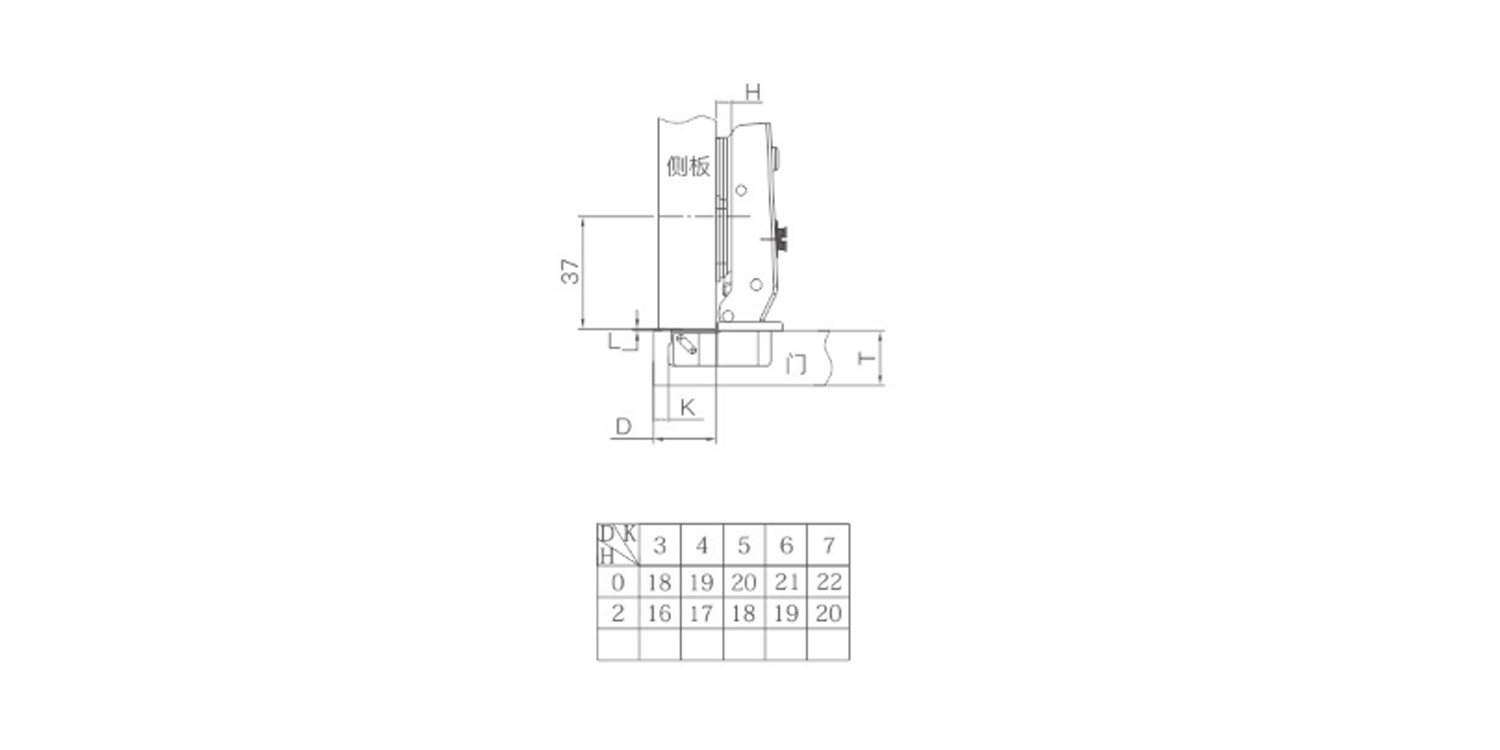

View installation reference

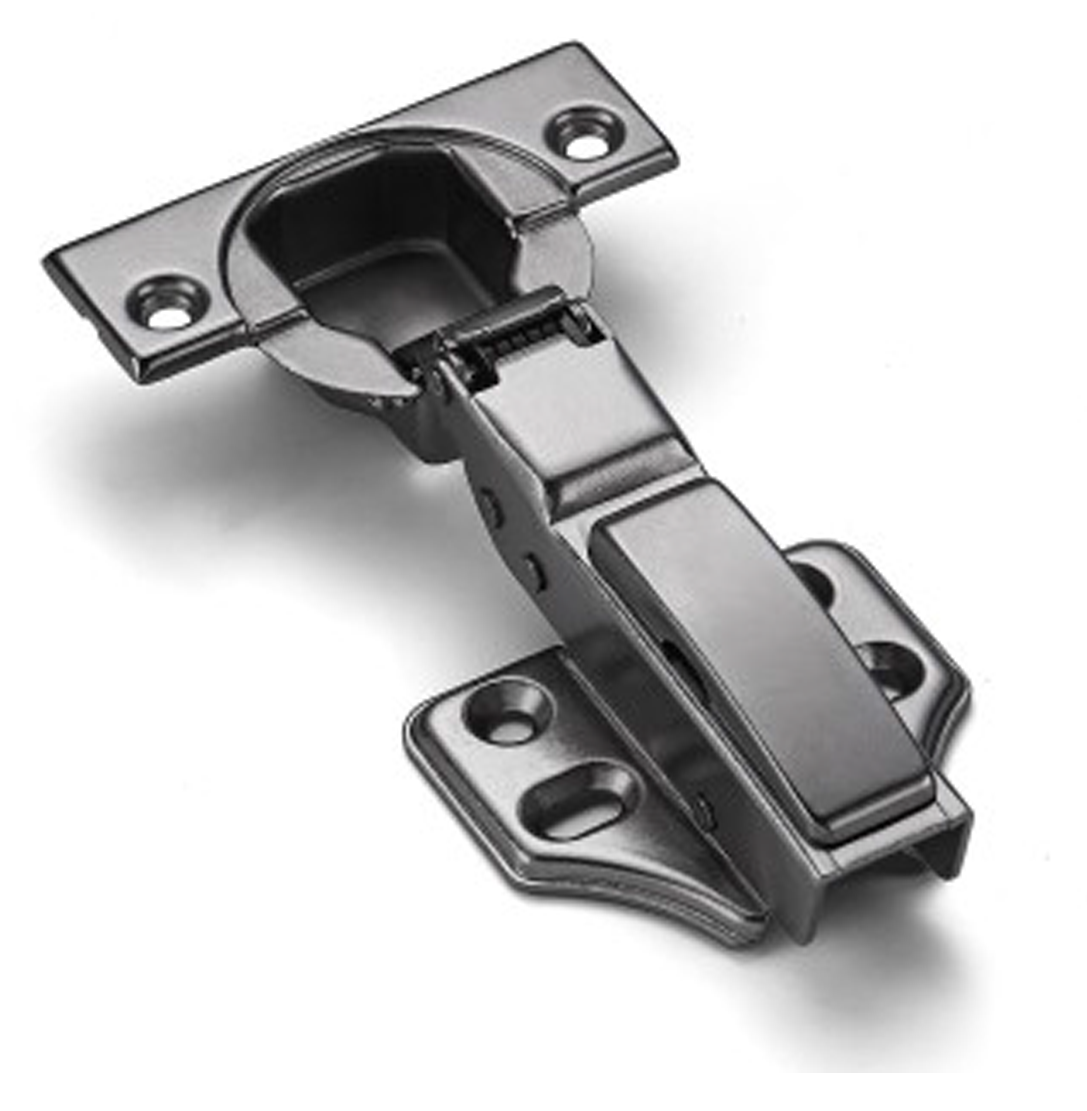

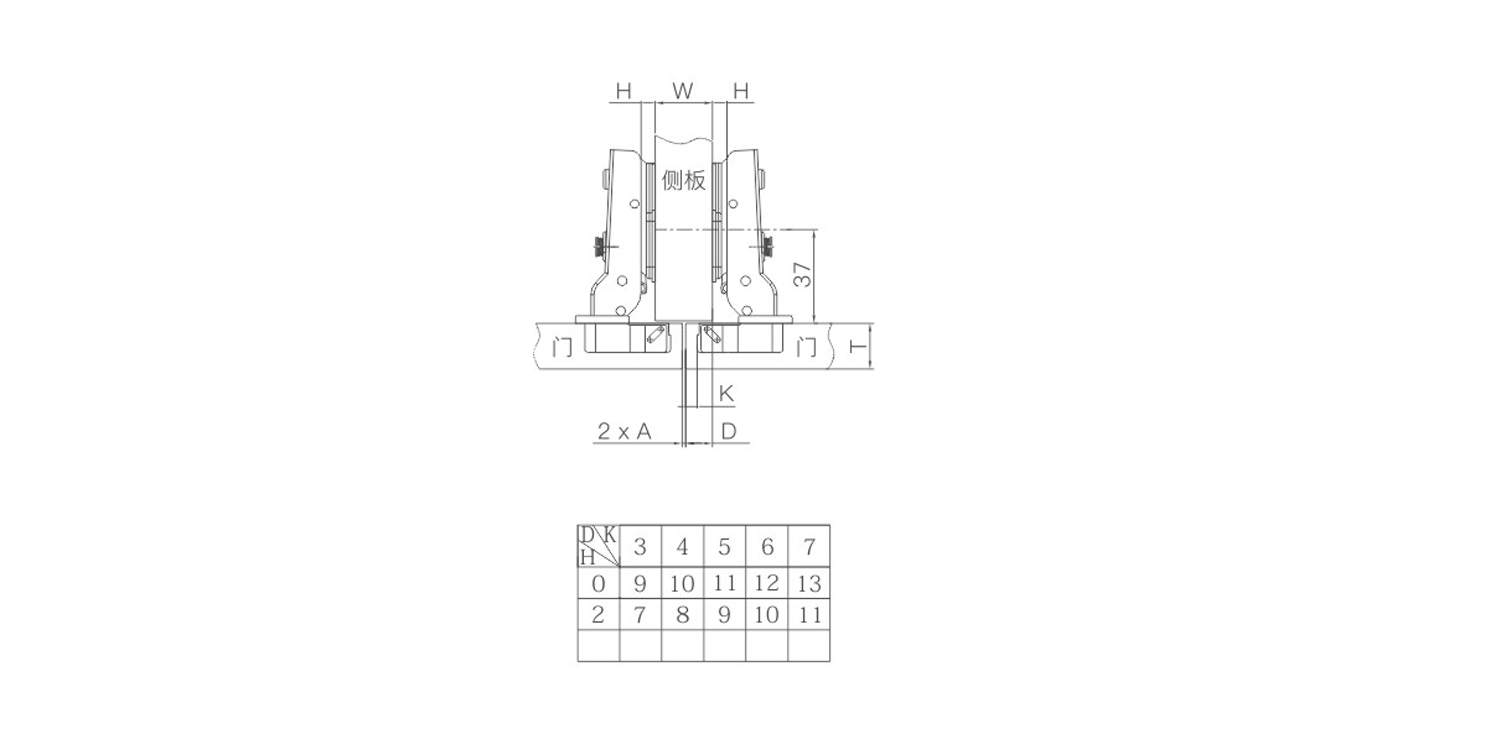

Half overlay

Three-Stage Soft-Close Concealed Hinge

Half-overlay configuration for two doors sharing a common cabinet side panel.

Material: Cold-rolled steel
Finish: Zinc plated / dark finish
Door thickness: 18–28 mm
Side panel: 18–21 mm
Hinge cup: 35 mm × 11.5 mm
Hole spacing: 48 mm

REQUEST A QUOTE

View installation reference

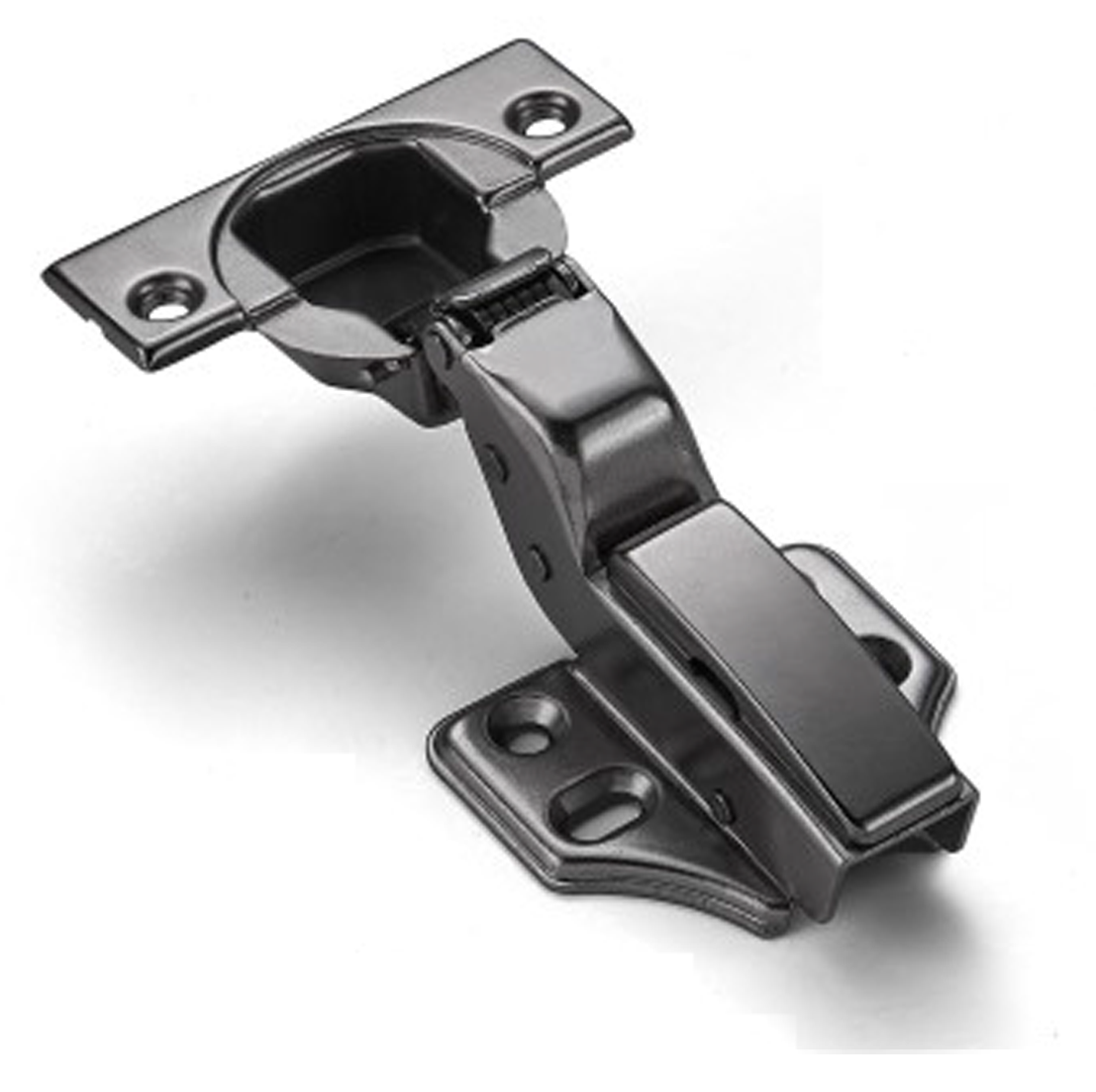

Inset

Three-Stage Soft-Close Concealed Hinge

Inset configuration for cabinet doors positioned inside the cabinet frame.

Material: Cold-rolled steel
Finish: Zinc plated / dark finish
Door thickness: 18–28 mm
Side panel: 18–21 mm
Hinge cup: 35 mm × 11.5 mm
Hole spacing: 48 mm

REQUEST A QUOTE

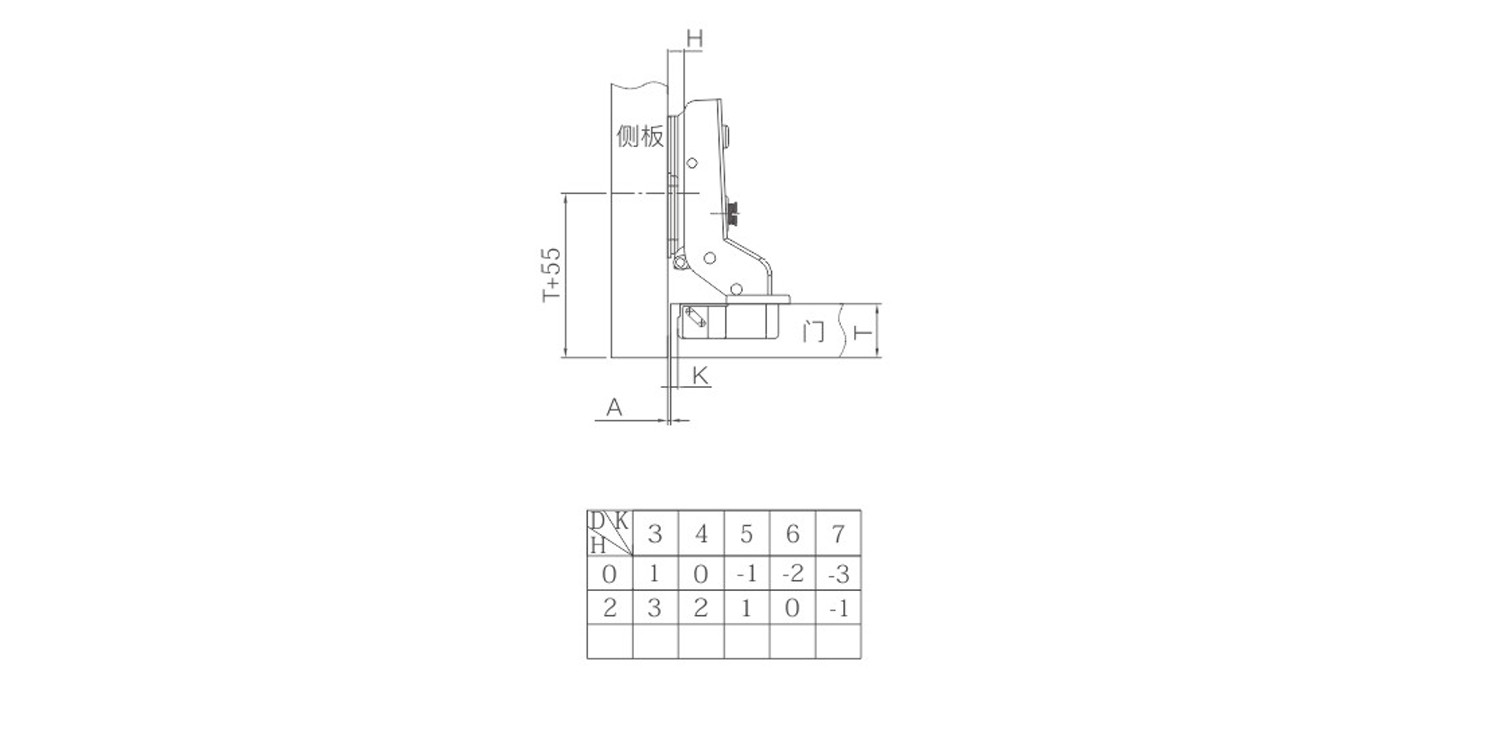

View installation reference

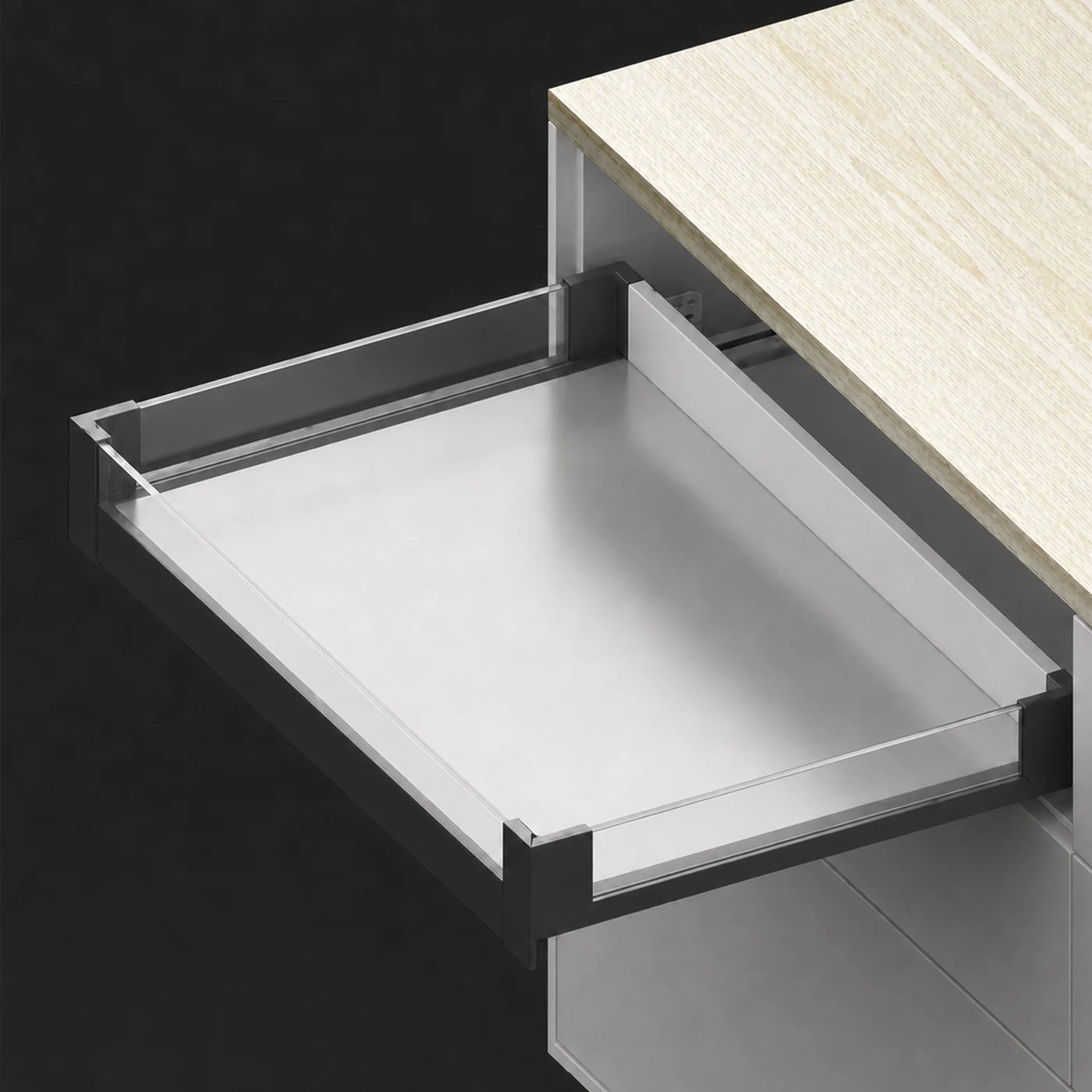

05 / Premium drawer systems

Three platforms. Ten supplied configurations.

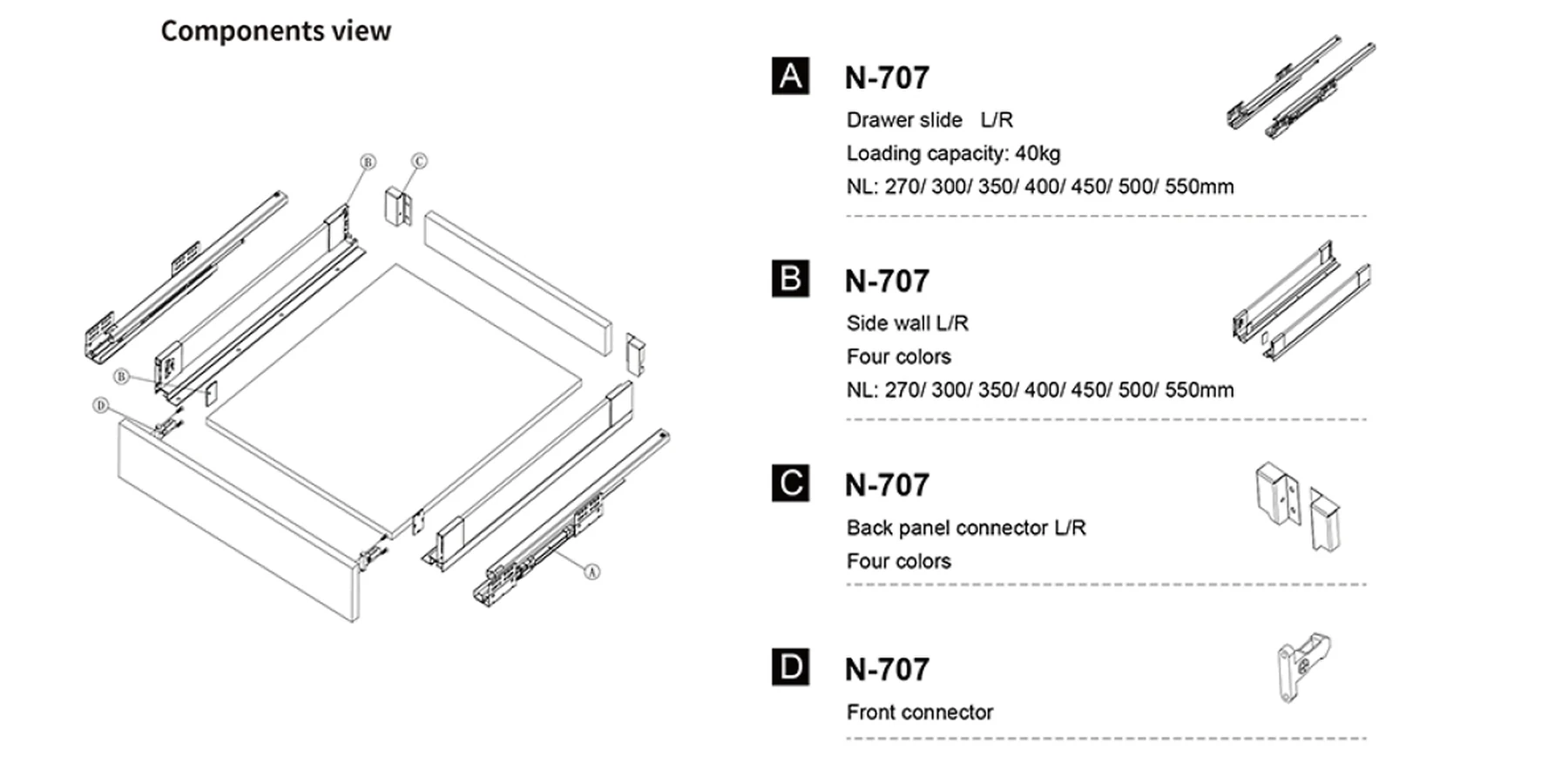

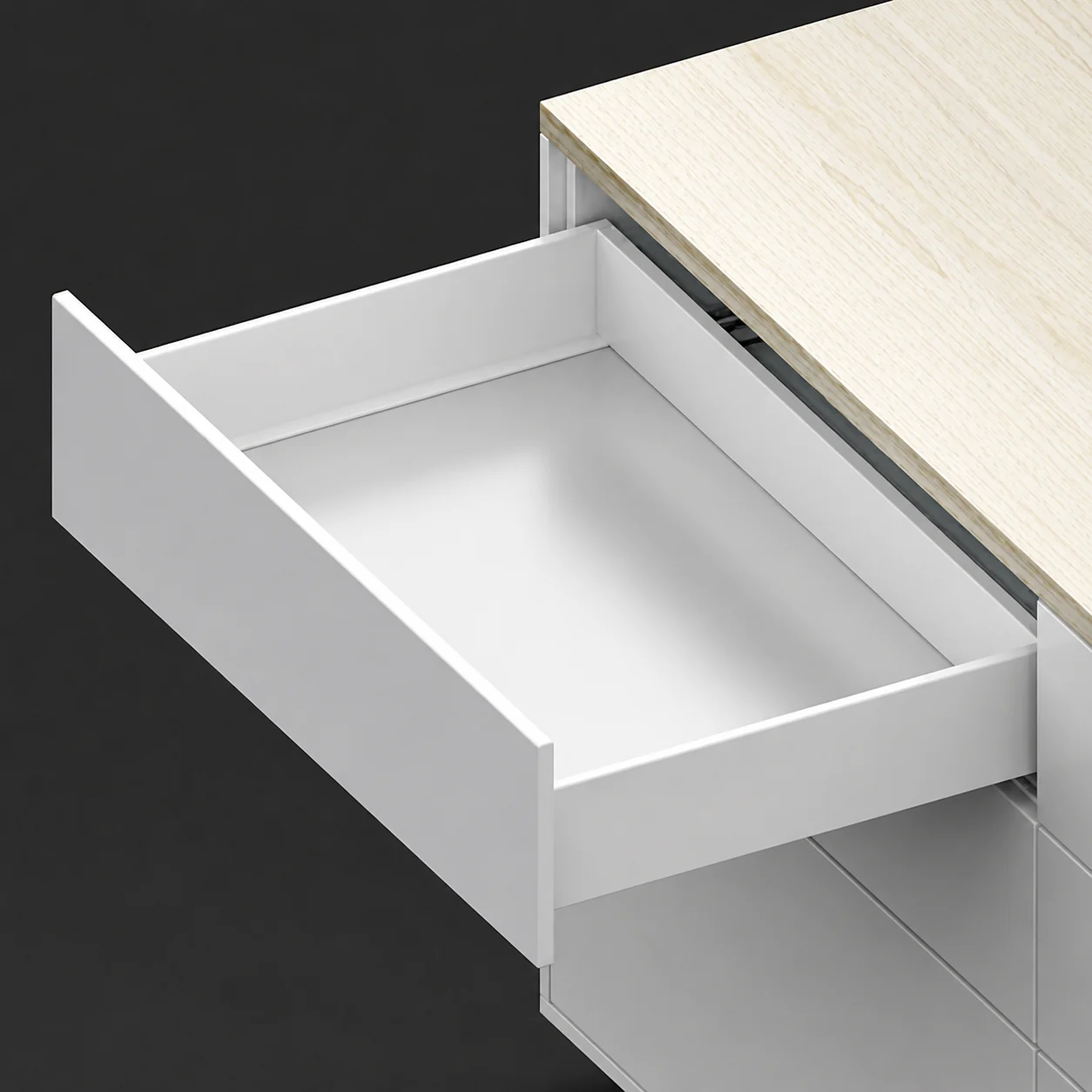

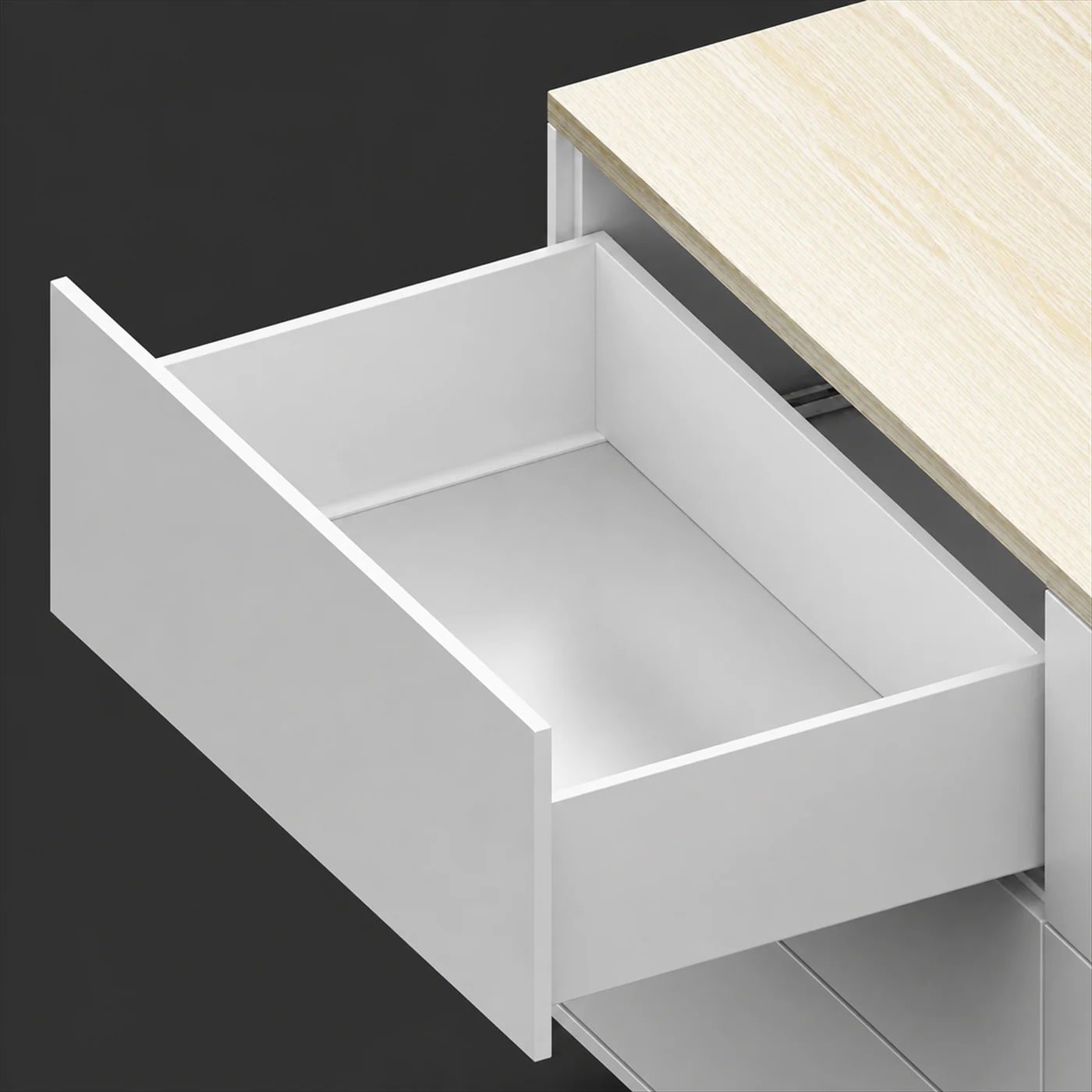

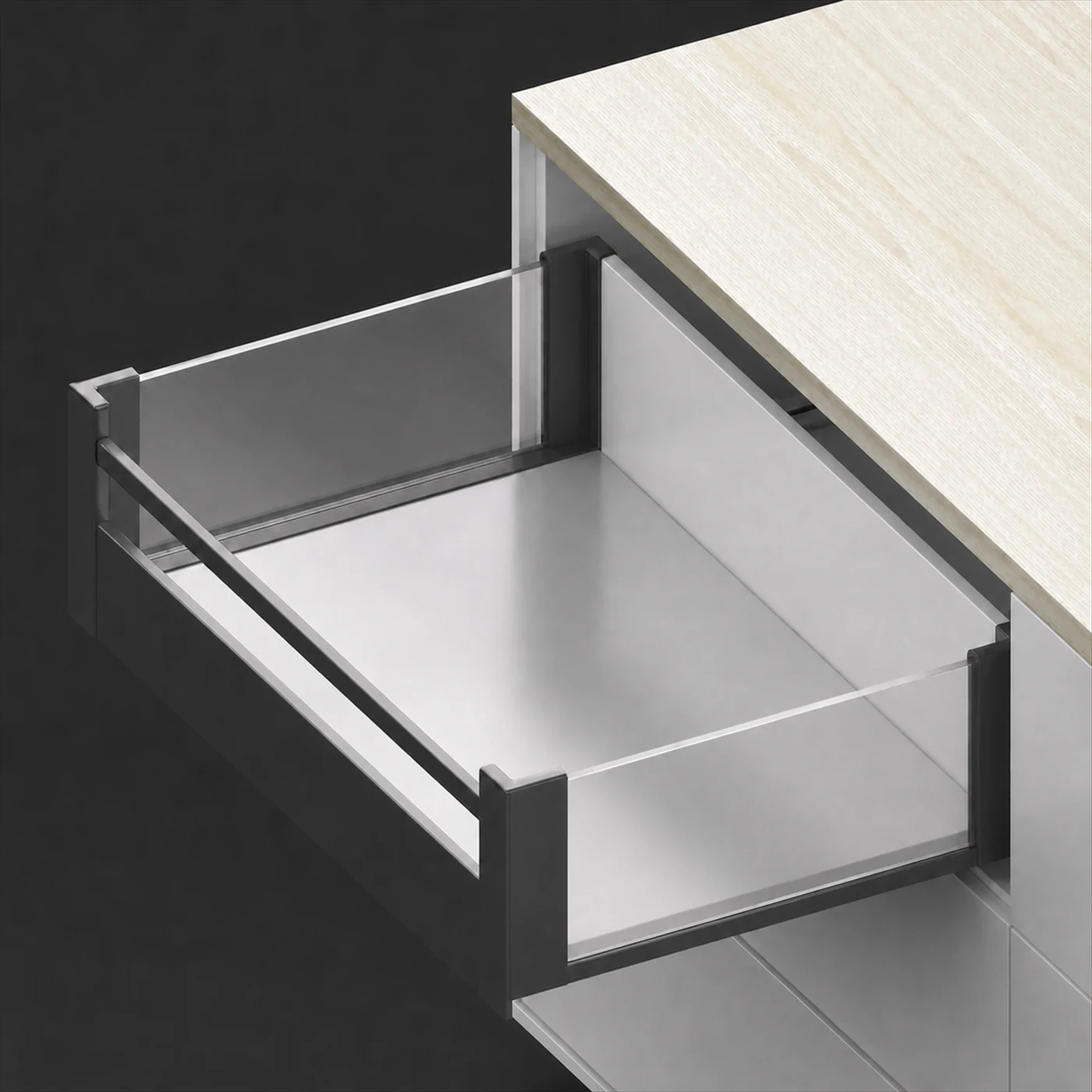

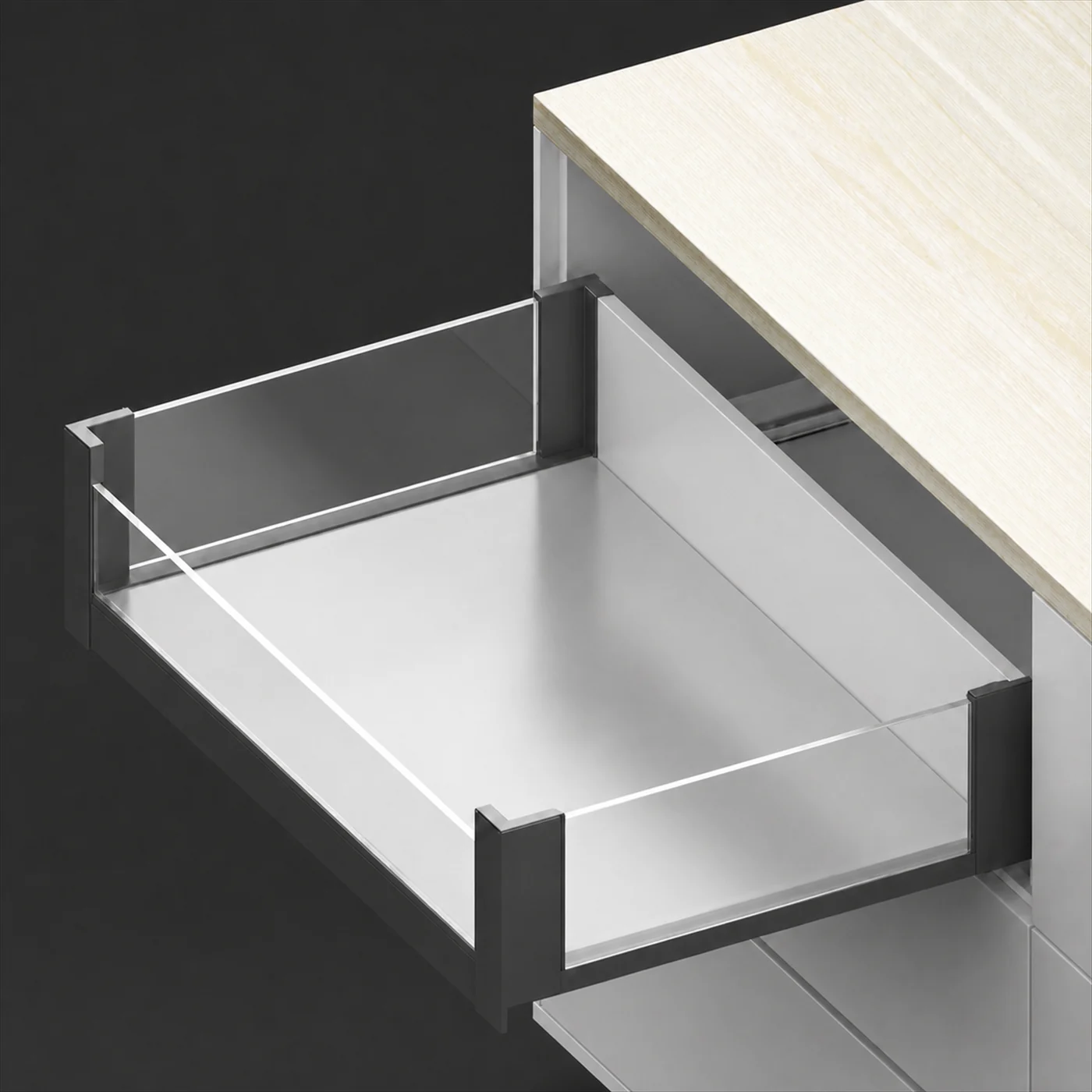

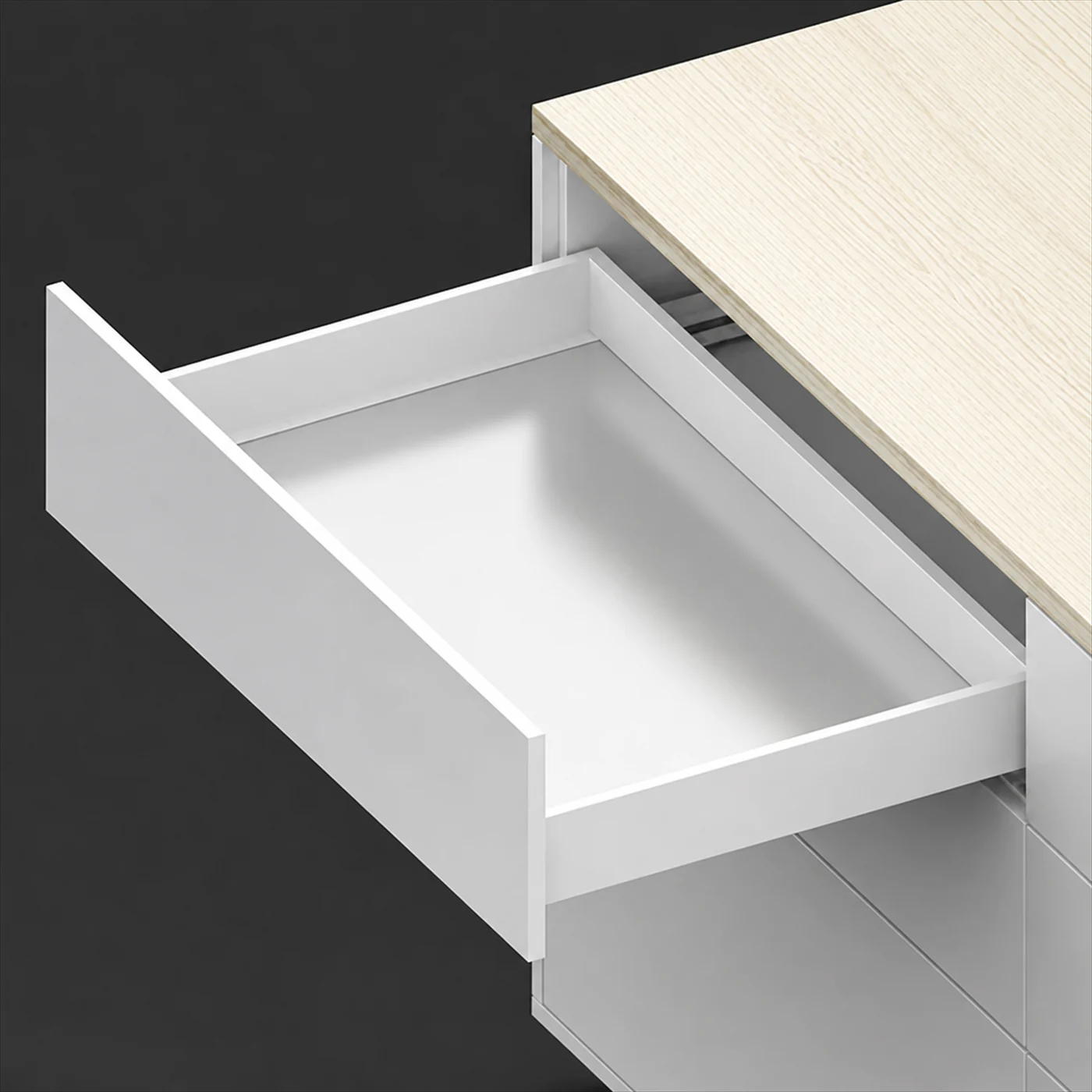

N-607, N-707 and N-907 systems combine 40 kg capacity, synchronized quiet movement and precise front adjustment. Every value below follows the supplied parameter image for that configuration.

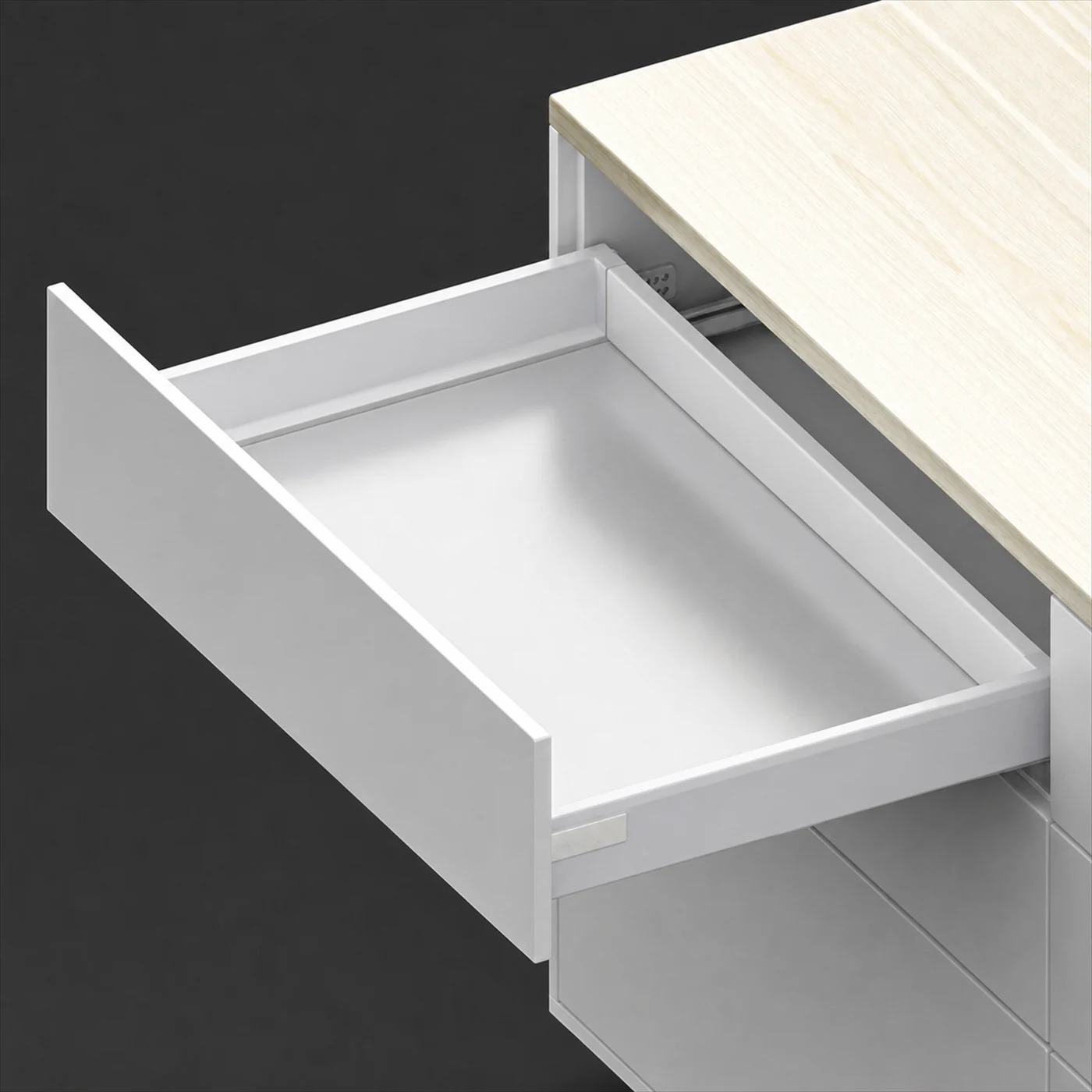

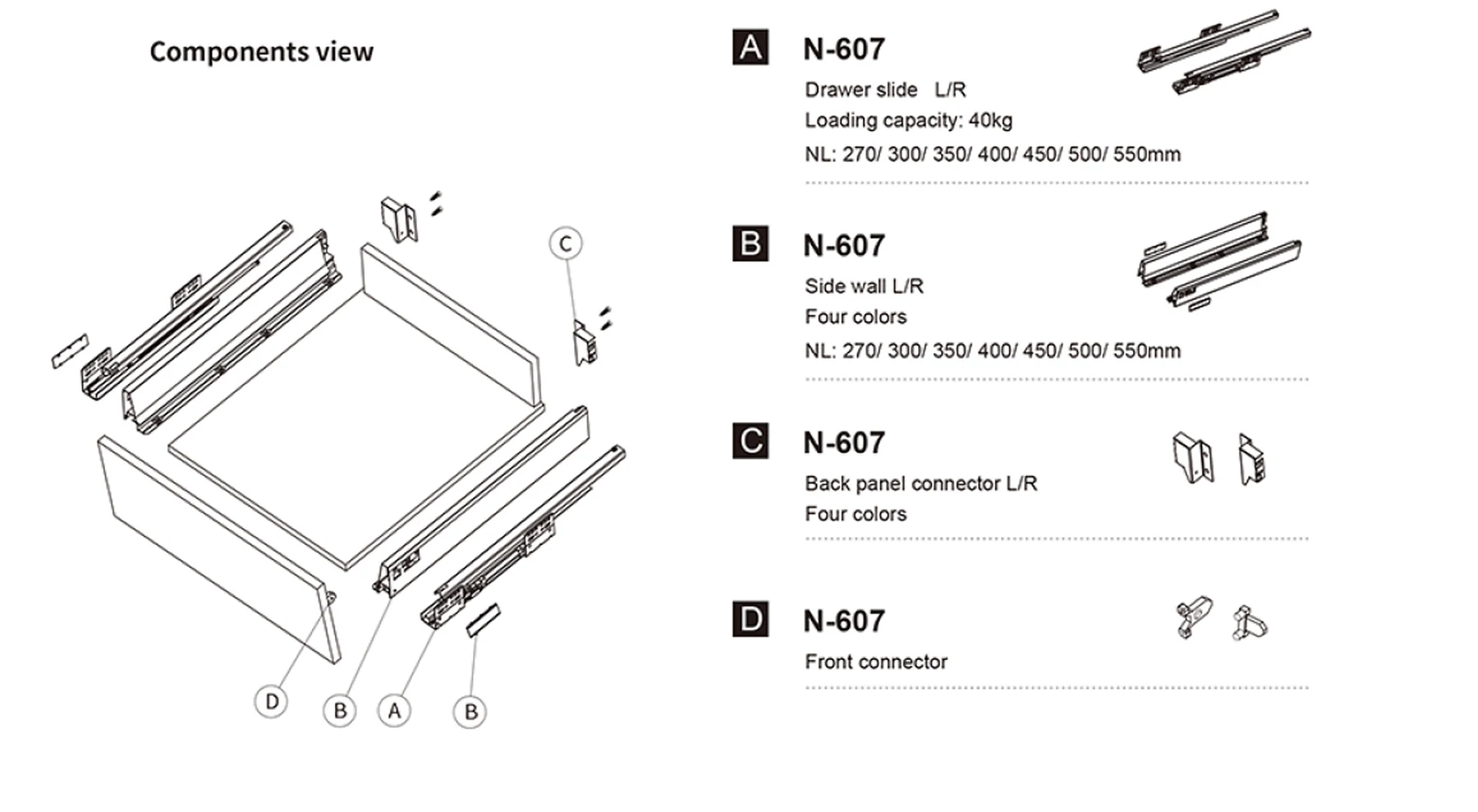

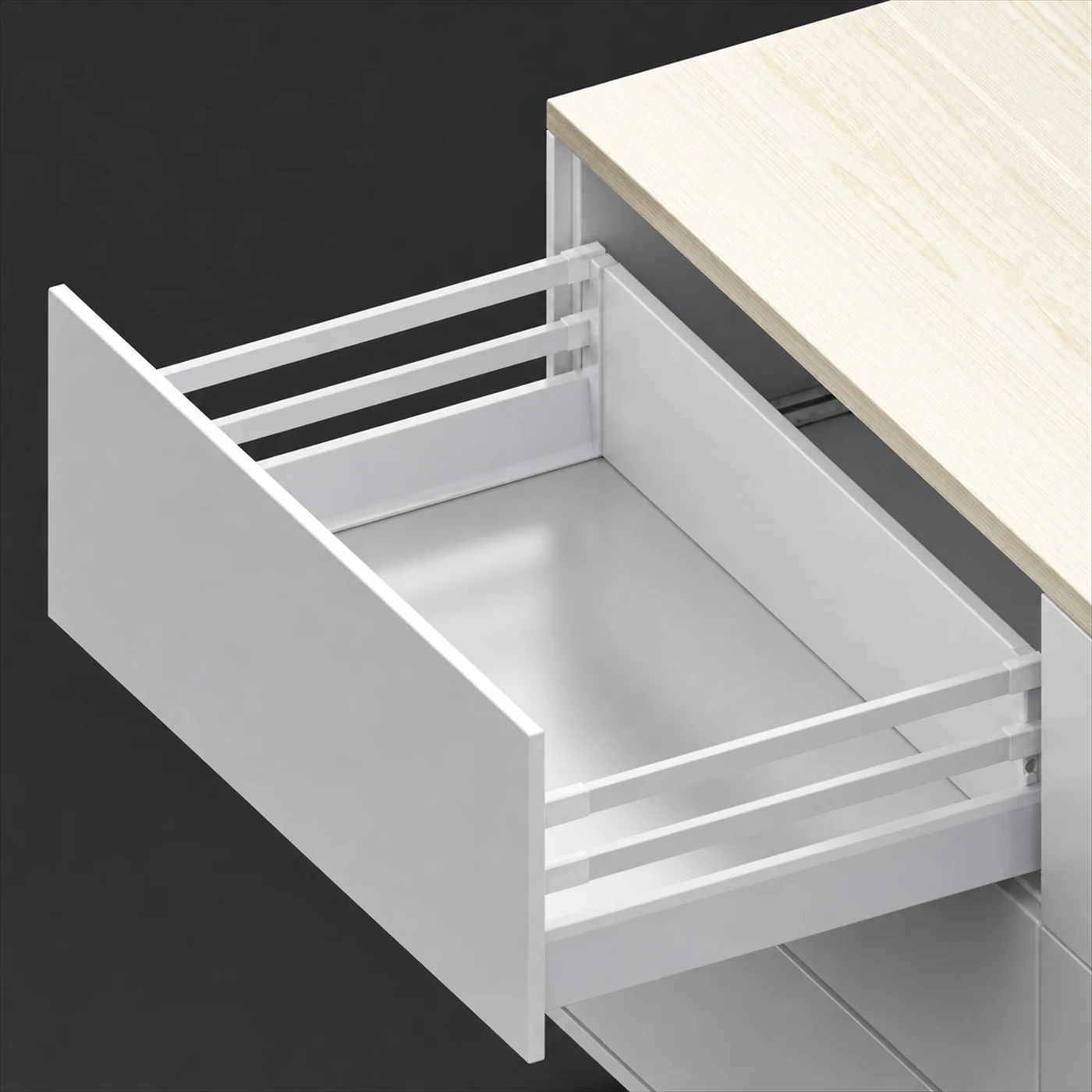

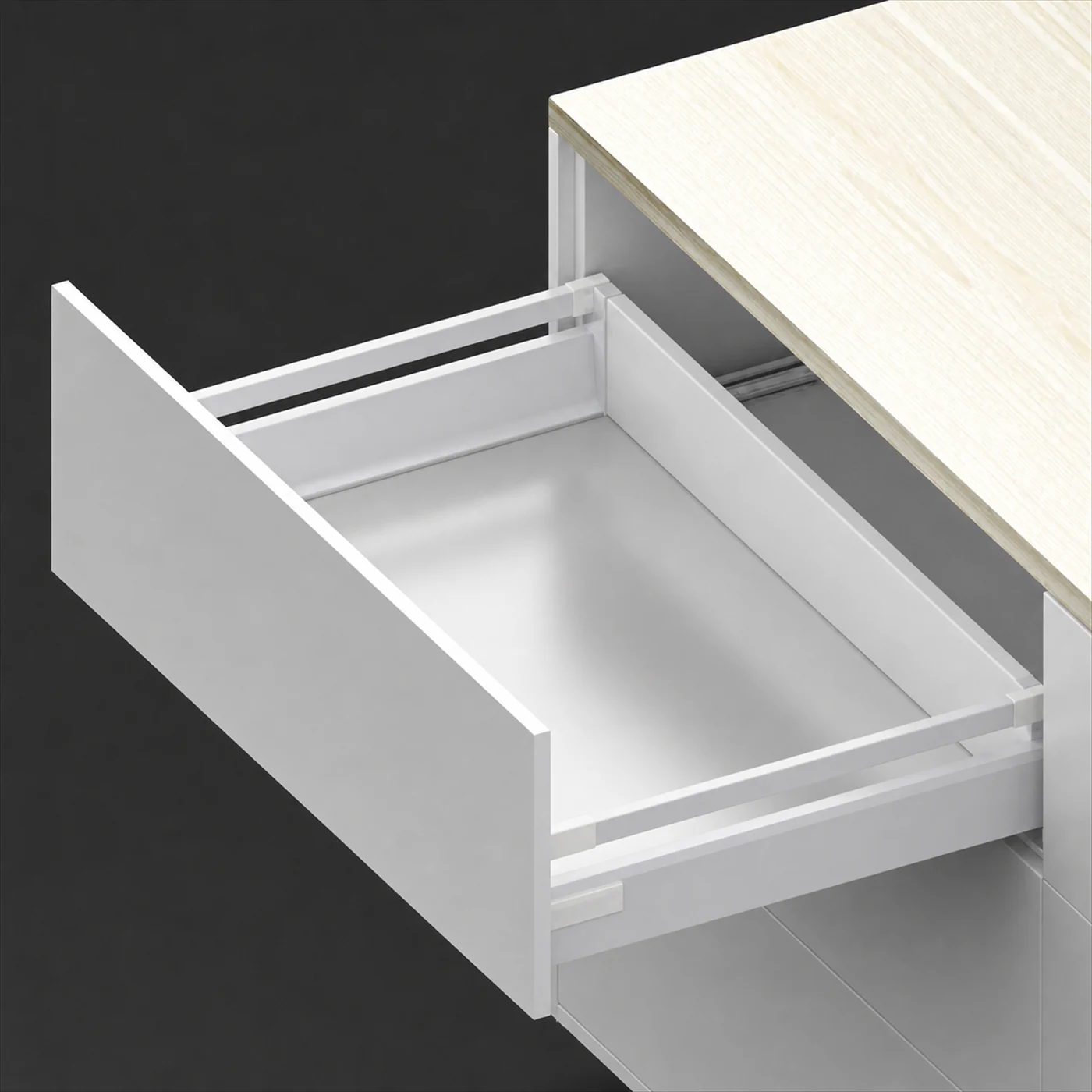

N-607 series

Slim Drawer Systems

Available in a low profile or with rectangular side rails. All three configurations use synchronized quiet movement, four regular colors and ±1.5 mm front adjustment vertically and horizontally.
